Multi Nano Ceramic IR Films Amateras
AUTOMOTIVE CNT WINDOW FILMS
AMATERAS IR필름은 월등한 열차단 기능 및 낮은 빛 반사율을 제공하고 주행시야의 막힘이 없으며 유해한 UV광선을 99%이상 차단합니다.
- 우수한 열차단 성능
- 휴대전화, 라디오, GPS의 전파를 방해하지 않음
- 산화방지 코팅으로 보라색 변이 및 산화 없음
Product : Amateras V-10
Base : PET 50μmSize : 1524mm * 30M
Optical Properties :
| Item | Color | VLT(Int) | UV | IR | SHGC | Hardness |
|---|---|---|---|---|---|---|
| Amateras V-10 |
Grey | 10 | 99.9 | 97 | 0.13 | 2H |

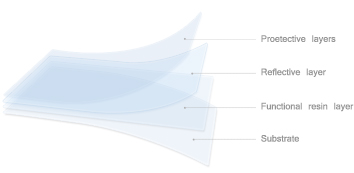

Structure
* Structures can be changed by user’s demand
Applications
| • Trucks | • Cars & Vans | • Architectural Signage |
| • Emergency Vehicles | • Buses | • Boat |
| • Trailers | • Trains & Light Rail | • Outdoor Advertising |
Products
| Product | Thickness | LCR meter | UV cut(%) | VLT(%) | IR CUT(%) | SHGC | Adhesion 180 Peel | Hardness | Haze(%) |
|---|---|---|---|---|---|---|---|---|---|
| Test method | JIS A 5759 | JIS Z 0237 | JIS K 5600 | JIS K 7105 | |||||
| HNR 1595 | 64±2(Except liner) | L | 99.9 | 15 | 98 | 0.28 | 700gf < | 2H/ 500g | 0.9 |
| C | 99.9 | 16 | 98 | 0.28 | |||||
| R | 99.9 | 15 | 98 | 0.28 | |||||
| HNR 2095 | 64±2(Except liner) | L | 99.9 | 23 | 97 | 0.29 | 700gf < | 2H/ 500g | 0.87 |
| C | 99.9 | 23 | 98 | 0.29 | |||||
| R | 99.9 | 23 | 97 | 0.29 | |||||
| HNR 3595 | 64±2(Except liner) | L | 99.9 | 35 | 97 | 0.31 | 700gf < | 2H/ 500g | 0.78 |
| C | 99.9 | 36 | 97 | 0.31 | |||||
| R | 99.9 | 35 | 98 | 0.31 | |||||
| HNR 4595 | 64±2(Except liner) | L | 99.9 | 44 | 96 | 0.32 | 700gf < | 2H/ 500g | 0.73 |
| C | 99.9 | 45 | 97 | 0.32 | |||||
| R | 99.9 | 44 | 96 | 0.32 | |||||
| HNR 6095 | 64±2(Except liner) | L | 99.9 | 59 | 95 | 0.34 | 700gf < | 2H/ 500g | 0.69 |
| C | 99.9 | 60 | 96 | 0.34 | |||||
| R | 99.9 | 59 | 95 | 0.34 | |||||
